QM-5 Laboratory Ball Mill with Variable Speed 60-570 Rpm, Robust Build, and Grinding and Mixing Capabilities for Research and Industrial Use
Datos del producto:
| Lugar de origen: | China de Hunan |
| Nombre de la marca: | TENCAN |
| Certificación: | ISO CE |
| Número de modelo: | QM-5 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 juego |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | Caja de cartón y madera contrachapada con espuma |
| Tiempo de entrega: | 3-7 días |
| Condiciones de pago: | T/T, unión occidental, L/C |
| Capacidad de la fuente: | 500 juegos por mes |
|
Información detallada |
|||
| Garantía: | un año | Finura final: | 13-74 μm |
|---|---|---|---|
| tipo: | Fábrica de bolas de laboratorio | Frasco: | 1 pieza |
| Velocidad de rotación: | 60-570 rpm | Solicitud: | Moler y mezclar pequeñas cantidades de muestras |
| Descripción: | Molino de bolas de rodillo de una posición de trabajo | Capacidad máxima total: | 1.75L |
Descripción de producto

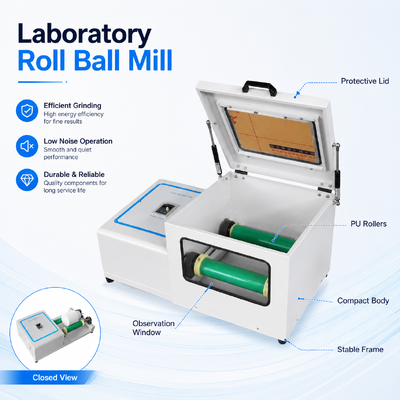

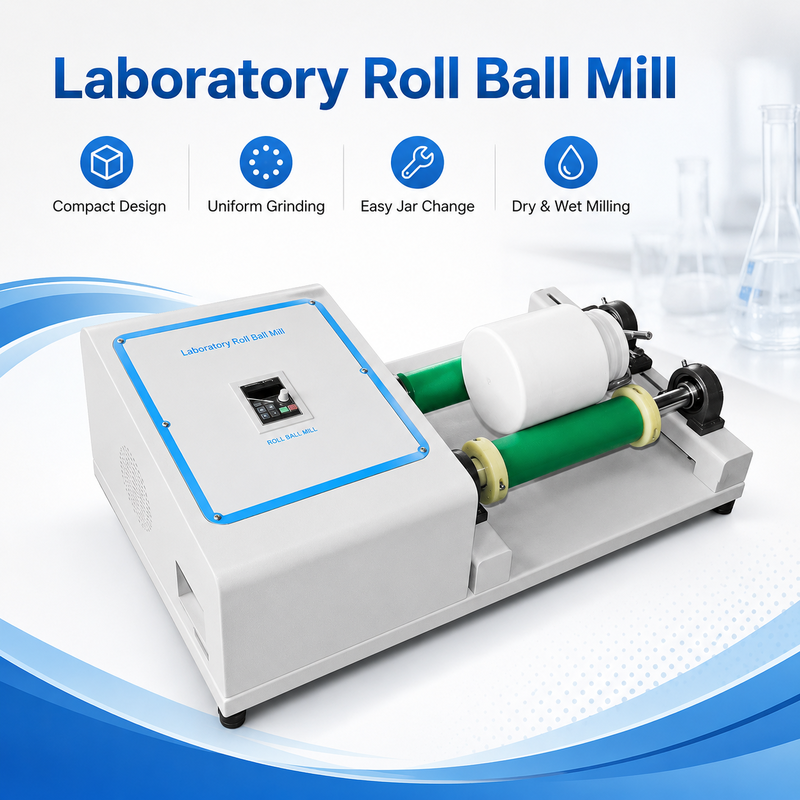

The TENCAN QM-5 Lab Roll Ball Mill is designed for laboratory powder grinding, material mixing, and small-batch sample preparation. With a compact one-working-position structure, variable frequency control, and support for dry or wet grinding, it is suitable for daily laboratory milling tasks in universities, research centers, testing labs, and material development departments.

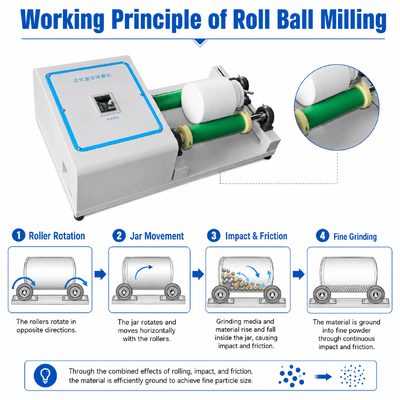

The Laboratory Roll Ball Mill is used for grinding and mixing small quantities of samples. The grinding jar rotates steadily on two rollers, allowing the grinding balls and materials inside the jar to move continuously for particle size reduction and uniform mixing.
This model is suitable for both dry and wet samples. It can be used for ores, ceramics, alloys, paints, slurries, suspensions, electronic materials, ceramic glazes, non-metallic minerals, metallic minerals, and new material research.

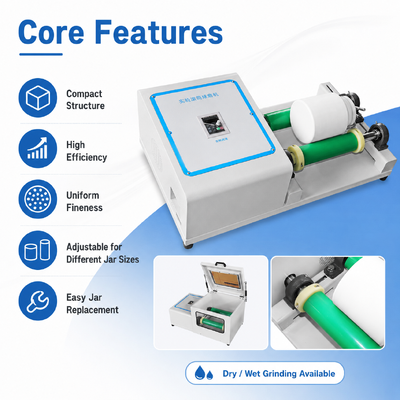

The machine features a simple structure, easy jar loading, convenient cleaning, and stable operation. Different grinding jar and ball materials can be selected according to the hardness, purity requirement, and chemical properties of the sample.
Adjustable rotate speed helps match different material properties and grinding requirements.
Suitable for dry powder grinding, material mixing, slurry preparation, and wet milling.
Balanced roller support helps reduce jar wobble and keeps rotation stable.

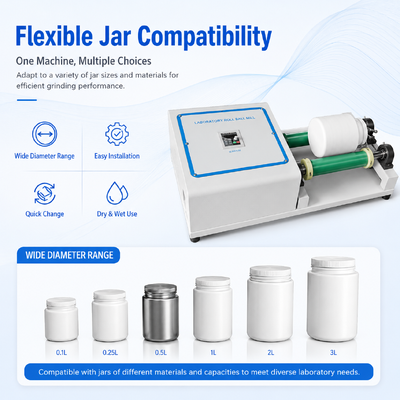

Stainless steel, polyurethane, PTFE, nylon, corundum, and ceramic roll mill jars are available.

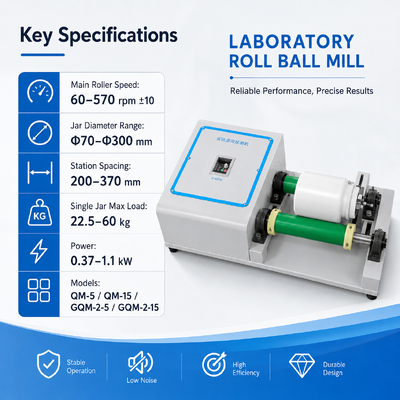

| Parameter | Specification |
|---|---|
| Application | Grinding And Mixing Small Quantities Of Samples |
| Type | Lab Ball Mill |
| Description | One Working Position Roll Ball Mill |
| Total Max Capacity | 1.75L |
| Final Fineness | 13-74μm |
| Capacity | 5L |
| Grinding Balls | According Your Material's Nature |
| Grinding Jar | 1pc |
| Warranty | One Year |
| Rotate Speed | 60-570 Rpm |
The QM-5 Laboratory Ball Mill is suitable for laboratories, universities, research centers, and testing applications that require reliable sample preparation and material grinding. It can be used for small-batch grinding, material mixing, quality testing, and experimental research.
Typical application fields include electronic materials, magnetic materials, biomedicine research, ceramic glaze slurry, metallic minerals, non-metallic minerals, and new materials.
TENCAN
QM-5
Hunan China
ISO CE
1 set
negotiable
Carton & Plywood Case with Foam
3-7 days
Technical support is available for model selection, jar and media recommendation, operation guidance, and maintenance advice. Users can choose suitable grinding jars and balls according to the material hardness, purity requirement, corrosion resistance, and grinding purpose.
Send your sample type, target particle size, batch volume, and grinding method. We can help recommend a suitable roll ball mill configuration and matching jar solution.
