TENCAN 1200C 1400C 1600C Horizontal Vacuum Tube Furnace Split Laboratory Sintering CVD Quartz Alumina Tube Oven
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | TENCAN |
| Certificación: | CE |
| Número de modelo: | TC-12NT |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|---|
| Tiempo de entrega: | 7~15 |
| Condiciones de pago: | D/A, L/C, D/P, T/T, Unión Occidental |
|
Información detallada |
|||
| temperatura máxima: | 1200°C / 1400°C / 1600°C Opcional | Temperatura de trabajo: | 1100°C / 1300°C / 1500°C Opcional |
|---|---|---|---|
| Zona de calentamiento: | 300 mm / 450 mm opcional | Diámetro del tubo: | 40~120mm Opcional |
| Material del tubo: | Tubo de cuarzo/tubo de alúmina opcional | elemento calefactor: | Cable de resistencia/calentador de SiC/calentador MoSi2 opcional |
| Precisión de temperatura: | ±1°C | Programa de temperatura: | Control programable de 30 segmentos |
| Rendimiento del vacío: | Hasta -0,1 MPa, bomba molecular opcional | Control de la atmósfera: | Vacío/Nitrógeno/Argón/Gas Inerte Disponible |
| Resaltar: | CVD Horizontal Vacuum Tube Furnace,1600C Horizontal Vacuum Tube Furnace,Laboratory Horizontal Vacuum Tube Furnace |
||
Descripción de producto
Vacuum Tube Furnace for Laboratory and Industrial Thermal Processing

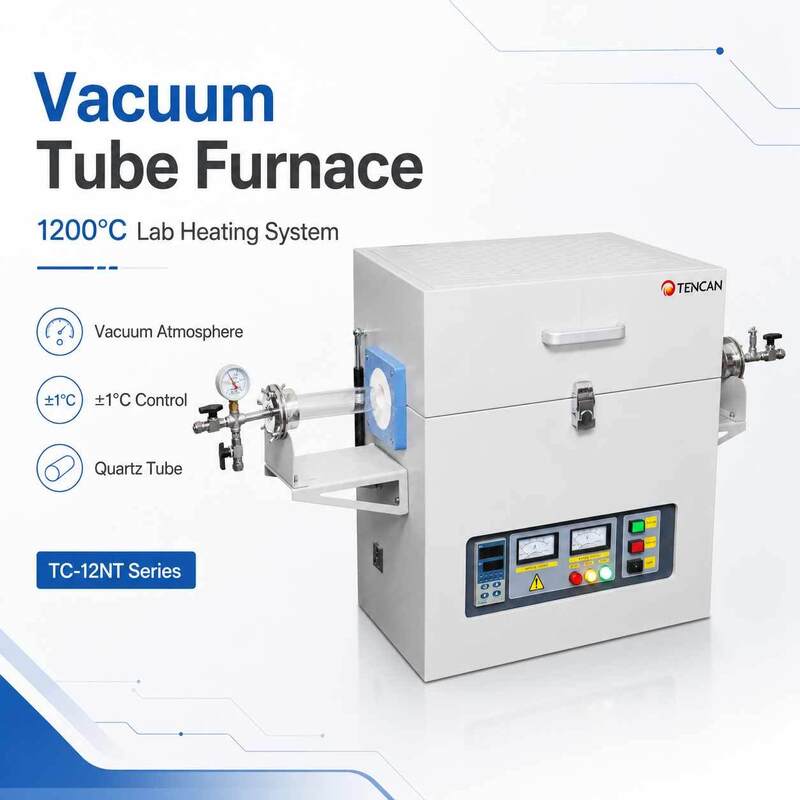

The TENCAN Vacuum Tube Furnace is a high-temperature horizontal tube furnace designed for vacuum, inert gas, reducing atmosphere, and controlled atmosphere heat treatment. It can be equipped with a high-purity quartz tube or high-purity alumina tube according to different temperature requirements and application conditions. Available temperature options range from 300°C to 1600°C, making it suitable for laboratory research, material testing, quality inspection, and small-batch production.

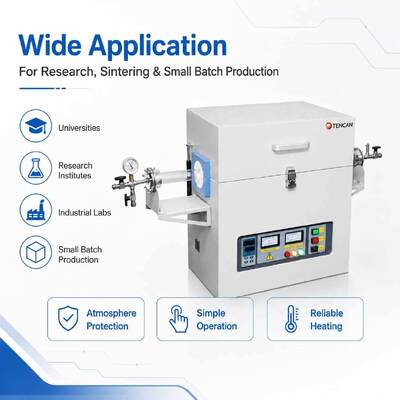

This vacuum tube furnace provides stable heating performance, accurate temperature control, excellent insulation, and uniform furnace temperature distribution. With its vacuum and gas atmosphere capability, it is widely used in universities, research institutes, laboratories, mining enterprises, material companies, and industrial production facilities for high-temperature sintering, metal material processing, powder metallurgy experiments, ceramic research, and thermal analysis.
As a horizontal tube furnace, the equipment allows samples to be placed inside the furnace tube while the temperature program and atmosphere conditions are precisely controlled. Users can create different processing environments inside the tube, including vacuum, nitrogen, argon, inert gas, or reducing atmosphere, to meet specific experimental and production requirements.

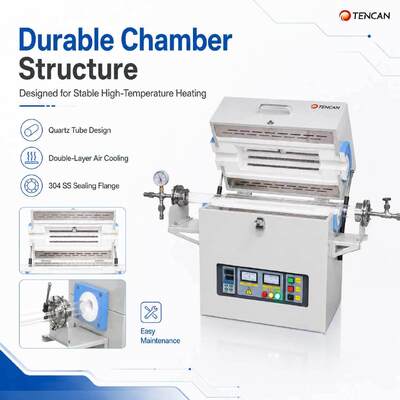

The furnace chamber adopts high-quality alumina polycrystalline fiber insulation material produced by vacuum forming technology, providing excellent heat preservation and energy-saving performance. The double-layer air-cooling furnace shell helps keep the outer surface temperature below 50°C during operation, improving safety and user comfort.
This series is equipped with a 50-segment programmable temperature controller, enabling automatic heating programs for complex thermal processes. It also features 304 stainless steel double-sealed flanges, adjustable flange support structures, over-temperature protection, leakage protection, and optional molecular pump systems for higher vacuum requirements.
Key Features
Maximum temperature options: 1200°C with resistance wire heating, 1400°C with silicon carbide heating elements, and 1600°C with molybdenum disilicide heating elements.
Intelligent 50-segment programmable automatic temperature control.
Double-layer air-cooling furnace shell with low surface temperature.
High-quality alumina polycrystalline fiber furnace chamber for excellent insulation.
304 stainless steel double-sealed flanges for reliable sealing performance.
Adjustable flange support structure to help extend furnace tube service life.
Over-temperature protection with automatic power cut-off.
Leakage protection for improved operational safety.
Heating rate up to 20°C/min.
Temperature control accuracy of ±1°C.

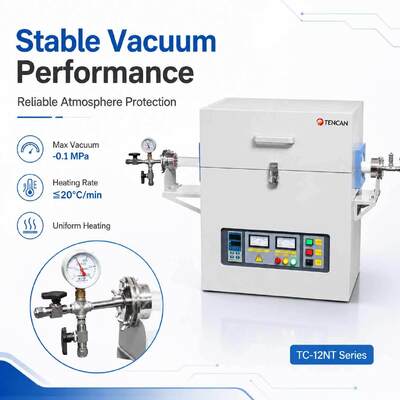

Standard vacuum level up to -0.1 MPa.
Optional molecular pump system with vacuum level up to 7 × 10⁻⁴ Pa.
Technical Parameters

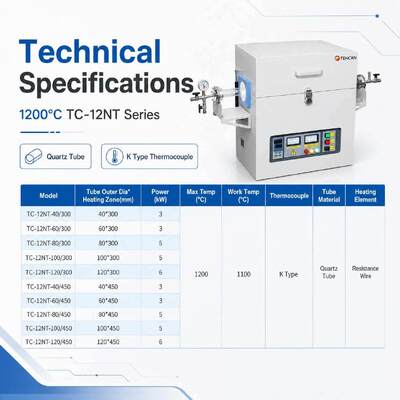

Standard 1200°C Series
| Model | Tube Diameter × Heating Zone Length (mm) | Power (kW) | Max. Temperature (°C) | Working Temperature (°C) | Thermocouple | Furnace Tube Material |
|---|---|---|---|---|---|---|
| TC-12NT-40/300 | 40×300 | 3 | 1200 | 1100 | K Type | Quartz Tube |
| TC-12NT-60/300 | 60×300 | 3 | 1200 | 1100 | K Type | Quartz Tube |
| TC-12NT-80/300 | 80×300 | 5 | 1200 | 1100 | K Type | Quartz Tube |
| TC-12NT-100/300 | 100×300 | 5 | 1200 | 1100 | K Type | Quartz Tube |
| TC-12NT-120/300 | 120×300 | 6 | 1200 | 1100 | K Type | Quartz Tube |
| TC-12NT-40/450 | 40×450 | 3 | 1200 | 1100 | K Type | Quartz Tube |
| TC-12NT-60/450 | 60×450 | 3 | 1200 | 1100 | K Type | Quartz Tube |
| TC-12NT-80/450 | 80×450 | 5 | 1200 | 1100 | K Type | Quartz Tube |
| TC-12NT-100/450 | 100×450 | 5 | 1200 | 1100 | K Type | Quartz Tube |
| TC-12NT-120/450 | 120×450 | 6 | 1200 | 1100 | K Type | Quartz Tube |
Standard 1400°C Series
| Model | Tube Diameter × Heating Zone Length (mm) | Power (kW) | Max. Temperature (°C) | Working Temperature (°C) | Thermocouple | Furnace Tube Material |
|---|---|---|---|---|---|---|
| TC-14ST-40/300 | 40×300 | 4 | 1400 | 1300 | S Type | Corundum Tube |
| TC-14ST-60/300 | 60×300 | 4 | 1400 | 1300 | S Type | Corundum Tube |
| TC-14ST-80/300 | 80×300 | 4 | 1400 | 1300 | S Type | Corundum Tube |
| TC-14ST-100/300 | 100×300 | 6 | 1400 | 1300 | S Type | Corundum Tube |
| TC-14ST-120/300 | 120×300 | 6 | 1400 | 1300 | S Type | Corundum Tube |
| TC-14ST-40/450 | 40×450 | 4 | 1400 | 1300 | S Type | Corundum Tube |
| TC-14ST-60/450 | 60×450 | 4 | 1400 | 1300 | S Type | Corundum Tube |
| TC-14ST-80/450 | 80×450 | 4 | 1400 | 1300 | S Type | Corundum Tube |
| TC-14ST-100/450 | 100×450 | 6 | 1400 | 1300 | S Type | Corundum Tube |
| TC-14ST-120/450 | 120×450 | 6 | 1400 | 1300 | S Type | Corundum Tube |
Standard 1600°C Series
| Model | Tube Diameter × Heating Zone Length (mm) | Power (kW) | Max. Temperature (°C) | Working Temperature (°C) | Thermocouple | Furnace Tube Material |
|---|---|---|---|---|---|---|
| TC-16MT-40/300 | 40×300 | 4 | 1600 | 1500 | B Type | Corundum Tube |
| TC-16MT-60/300 | 60×300 | 4 | 1600 | 1500 | B Type | Corundum Tube |
| TC-16MT-80/300 | 80×300 | 4 | 1600 | 1500 | B Type | Corundum Tube |
| TC-16MT-100/300 | 100×300 | 6 | 1600 | 1500 | B Type | Corundum Tube |
| TC-16MT-120/300 | 120×300 | 6 | 1600 | 1500 | B Type | Corundum Tube |
| TC-16MT-40/450 | 40×450 | 5 | 1600 | 1500 | B Type | Corundum Tube |
| TC-16MT-60/450 | 60×450 | 5 | 1600 | 1500 | B Type | Corundum Tube |
| TC-16MT-80/450 | 80×450 | 5 | 1600 | 1500 | B Type | Corundum Tube |
| TC-16MT-100/450 | 100×450 | 7 | 1600 | 1500 | B Type | Corundum Tube |
| TC-16MT-120/450 | 120×450 | 7 | 1600 | 1500 | B Type | Corundum Tube |
